A compact setup for wireless audio using 3 Rode-Link sets

Posted in Audio, Captain's Personal Log, Photojournalism, Reviews, Video on February 22, 2017 by William Hooks

I’m using this system to allow dual-system audio and video recording wirelessly, finding that 2 Rode-Link Filmmaker kits and a Newsshooter Kit work very well. A third lavalier microphone was added for use with the Newsshooter transmitter, in situations where 3 lavs are needed instead of 2 lavs and an XLR microphone- a Sennheiser ME-4N cardioid. The supports consist of a round-base microphone stand, Matthews Clamp and round platform with 1/4″ screw connected to a straight Matthews rod for the audio recorder (an H5 is shown here), OnStage strut with 1/4″ screw mount  for the 3rd receiver below, dual 5/8″ mic mount with adapters to allow attachment of the other 2 receivers above. The add-on dual XLR module works because each receiver is self-powered, so there’s  no phantom power issue.

Add a 3.5 mm cable to connect the Line Out from the recorder to the GH4 camera, a remote control for the recorder, and perhaps a USB power bank/mounting bracket (see prior post) for the recorder and we’re in business. The camera receives excellent-quality audio and there’s a separately recorded copy of each file available for sync, using Plural Eyes 4.x.

Advertisements

The Rode Newsshooter Kit and my project: THE FIGHT AGAINST TRUMPISAN (2017)

Posted in Audio, Captain's Personal Log, Photography, Photojournalism, Reviews, Video on February 15, 2017 by William Hooks

newsshooter_sennheiser-me-4n-lav-2newsshooter_sennheiser-me-4n-lav-1

p67601081p67601221p67601242p6760105p67601252p67601253I ‘ve been actively applying the wireless Rode Newsshooter Kit to supplement the 2 Filmmaker Kits I’ve had for some time, allowing excellent ENG sound production directly into my Panasonic GH4 4K mirrorless camera covering major events in California. The latest were 2 protest events in Los Angeles and San Francisco, against the incoming Trump regime. In Los Angeles, I had assistance with handheld mic interviews from one of my still shooters, Carmen Rosales and my old friend Mark Chambers did those honors at San Francisco International Airport, during the anti-Muslim ban event. Jim Garrett was the B-roll GH4 shooter in Los Angeles, and he has collaborated with me on editing and writing.

I was very impressed by the build quality and water resistance of the transmitter unit in driving rain at Los Angeles- I was concerned that the unit would fail at any time due to being soaked for hours, but it never missed a beat and the sound was remarkable when connected to my Sennheiser MD-46 dynamic microphone inside of a plastic bag.

It’s very convenient that the Newsshooter and Filmmaker receivers are identical, so that I can switch between them any time  simply by matching the channels with the corresponding transmitter or lav mic. There ‘s up to 40 v phantom power on the transmitter, more than enough to provide great gain for a Shure SM 58 or the Sennheiser dynamic mics; I can also use my Sennheiser ME-4 N lav mic with the transmitter and actively monitor its output using the headphone jack near the USB power jack. In addition, it can be powered by standard Sony FPS batteries as well as ubiquitous AA batteries.

Because it runs on wi-fi instead of RF, I have found it to be extremely reliable in field use even when surrounded by cell phones and other devices- and no need to manually match any frequencies. I can use up to 8 units at at time on individual channels.

My opinion: if you have $500 to spend on an XLR wireless system, this is by far the best option I have ever seen. Avoiding use of cables in an ENG environment has proven to be a significant advantage from the standpoint of safety, mobility, simplicity and reliability.

We’re going to be using the Newsshooter and Filmmaker Kits extensively, for continuing to document the rise of resistance to the Trump regime over the next several months.

The small Sachtler audio bag I use for sound recording in film/video production -or “Papa’s got a brand new bag”

Posted in Audio, Captain's Personal Log, Photojournalism, Video on August 10, 2016 by William Hooks
  • boom poles_ 2 shotguns_ blimp_2 Lavs

    foreground: Electrolet shotgun mic on Rode shock mount and boompole; rear: Rode blimp containing NTG-4 shotgun mic on Rode large pole

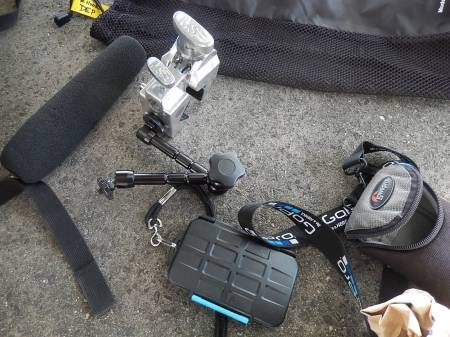

    grip setup for DAR on boom pole_closeup

    recorder mounting grip assembly

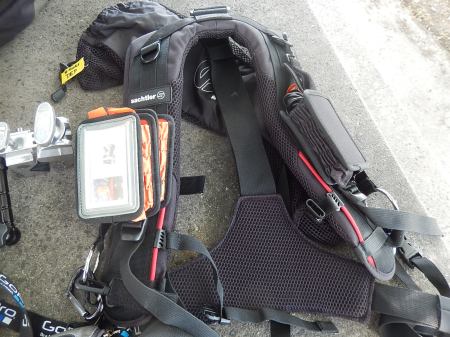

    Sachtler audio harness

    Sachtler heavy duty audio harness with modular pockets

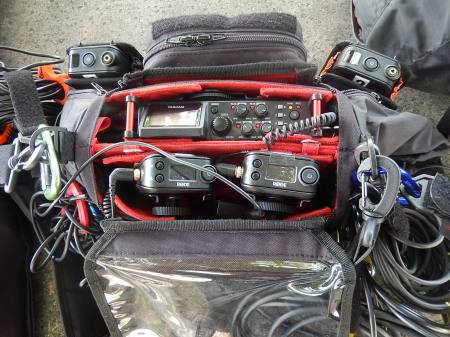

    Sachtler small bag with contents_1

    Interior of Sachtler small audio bag with contents

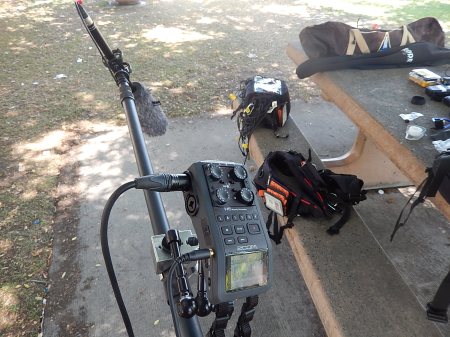

    Zoom H6 installed on boom pole

    Zoom H6 recorder/mixer mounted on K-Tek Avalon graphite 12’6″ boom pole

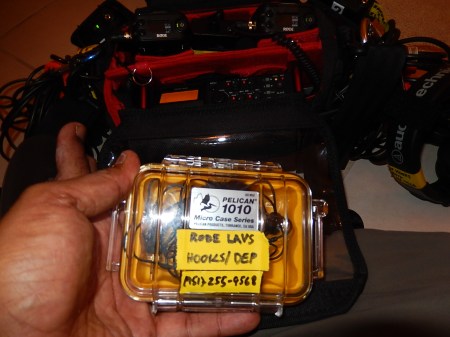

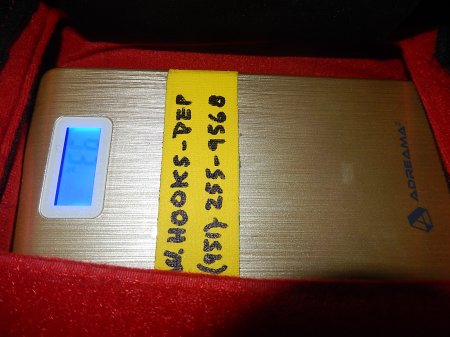

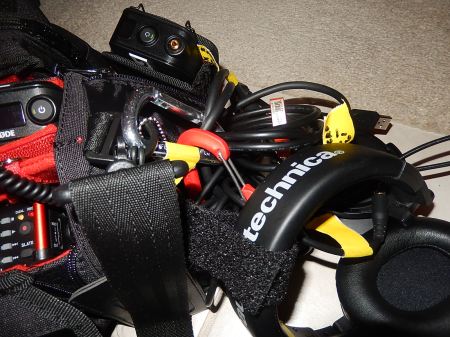

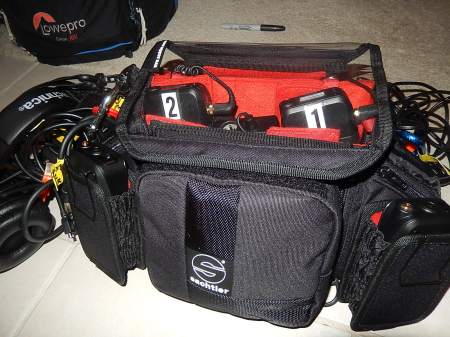

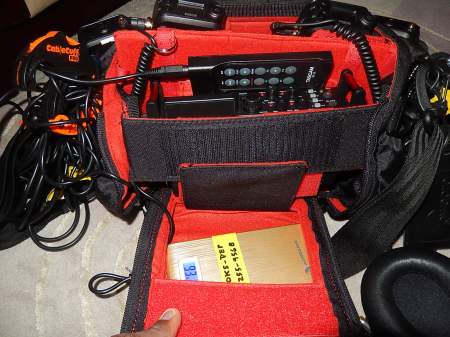

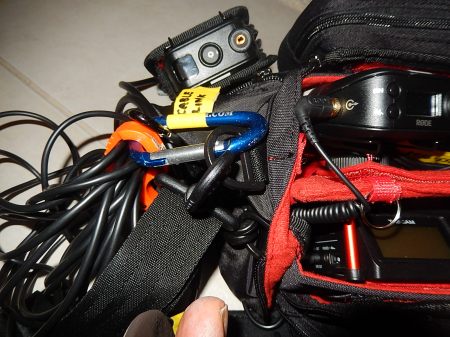

    Adreama 12K mAh power bankSmall audio bag and contents (7)Small audio bag and contents (2)Small audio bag and contents (4)Small audio bag and contents (5)Small audio bag and contents (6)

Continue reading

The Rode Video Micro ultralight/compact, remote-powered shotgun microphone

Posted in Audio, backpacking, Music, Photojournalism, Reviews, Travel, ultralight techniques, Video on December 18, 2015 by William Hooks

I just received this superlight unit from B&H, at $60 regular price.

It’s powered from the camera or other 3 v supply, and has no internal battery requiring periodic checking and replacement. I use another mic of similar size and weight of Chinese origin (see my equipment list page), which uses an internal CR2 battery; both have their advantages re powering. This microphone really is to be used by direct connection to a camera’s 3.5mm jack.

This type of mic is very useful for a number of situations: vehicle interior audio, backpacking, minimalist travel/photojournalism, creating tutorials at the computer screen by reversing the mic on the camera’s hot shoe for voiceovers… the excellent Rycote windscreen allows realistic use in moderate wind conditions.

It also has a 3/8″ base thread for use with a standard boompole.

Be sure that  NO PHANTOM POWER is applied to this unit!! If employed with a  Zoom H6, using plug-in power = 2.5 v for that particular recorder, be sure to set up for plug-in power before connecting the microphone.  Set the Tascam DR-70 D digital audio recorder to EXT POWER to enable plug-in power.



DSCN2459 DSCN2461

My preliminary assessment of sound quality is that I would happily use it with an NTG-4 or  Audio Technica Pro70 wired lav mic. Gain is more than adequate.



The fact that it has no controls whatsoever contributes to a streamlined, simple form factor; when I need to control the width of pickup coverage, I ‘d go to the Shenggu SG-180 shotgun (90-120 degree settings).

The website and Facebook page for WATER HUNGRY documentary were posted today

Posted in Audio, Photography, Photojournalism, Travel, Video on October 1, 2015 by William Hooks
at the Hollywood anticorporate protest co-sponsored by ANSWER Coalition, Sept 2015

At the Hollywood anticorporate protest co-sponsored by ANSWER Coalition, Sept 2015

Commnal water dispensing station, East Porterville, CA

Communal water dispensing station, East Porterville, CA

Guy Fawkes lives on

Guy Fawkes lives on in protest

Melinda Steffen interviewing a resident dealing with acute water supply issues in East Porterville, CA

Melinda Steffen interviewing a resident dealing with acute water supply issues in East Porterville, CA





Patricia Magana and family, East Porterville, CA

Patricia Magana and family, East Porterville, CADSC00030

A version of the film's avatar; original artwork by Melinda Steffen

A version of the film’s avatar; original artwork by Melinda Steffen

Please check both our Facebook page and the film website for updates, reference links to information about the crisis over water in the state of California, and background about the process of creating this project.

Covering the ANSWER Anticorporate protest in Hollywood, CA

Posted in Audio, Captain's Personal Log, Photography, Photojournalism, Reviews, Video with tags , , , , , , , , , , , on September 12, 2015 by William Hooks

This afternoon, there was a protest march against corporate practices across the world held in Hollywood where I conducted several interviews with activists. These included  Navaho native American Paige Murphy representing Therednation.org, Hamid Assian from Food And Water Watch.org based in Wash, DC, and a Pasadena activist from Citizens Climate Lobby, James Waterhouse.

Doug, media coordinator for ANSWER event

Doug, media coordinator for ANSWER event

ANSWER Protest_2015_9 (5) ANSWER Protest_2015_9 (6) ANSWER Protest_2015_9 (7) ANSWER Protest_2015_9 (8) ANSWER Protest_2015_9 (10)For solo interview technique I like to use a dynamic microphone running to the Tascam DR-60D DAR unless I anticipate a lot of very loud noise, where the -20dB pads are nice on the Zoom H6. The 17-40mm f/4 L Canon zoom was my default lens, also used the 70-200 mm f/4 L. Love the AT Mx40 headphones for crowd work! They really help isolate the interviewee from the background and are very comfortable.

Page Murphy, co-founder of Therednation.org and Navaho I was using the 4K Panasonic GH4 and Benro S6 monopod for the day. Grateful for overcast weather! And thanks to Ed Flowers for some still shots—

Paige Murphy, co-founder of Therednation.org and Navaho

Documentary filming in the heat of central California

Posted in Audio, Photography, Photojournalism, Reviews, Travel, Video with tags , , , , , , , , , , , , , , , on August 29, 2015 by William Hooks

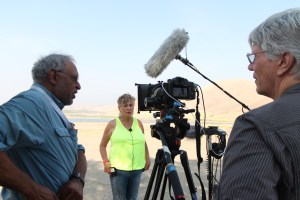

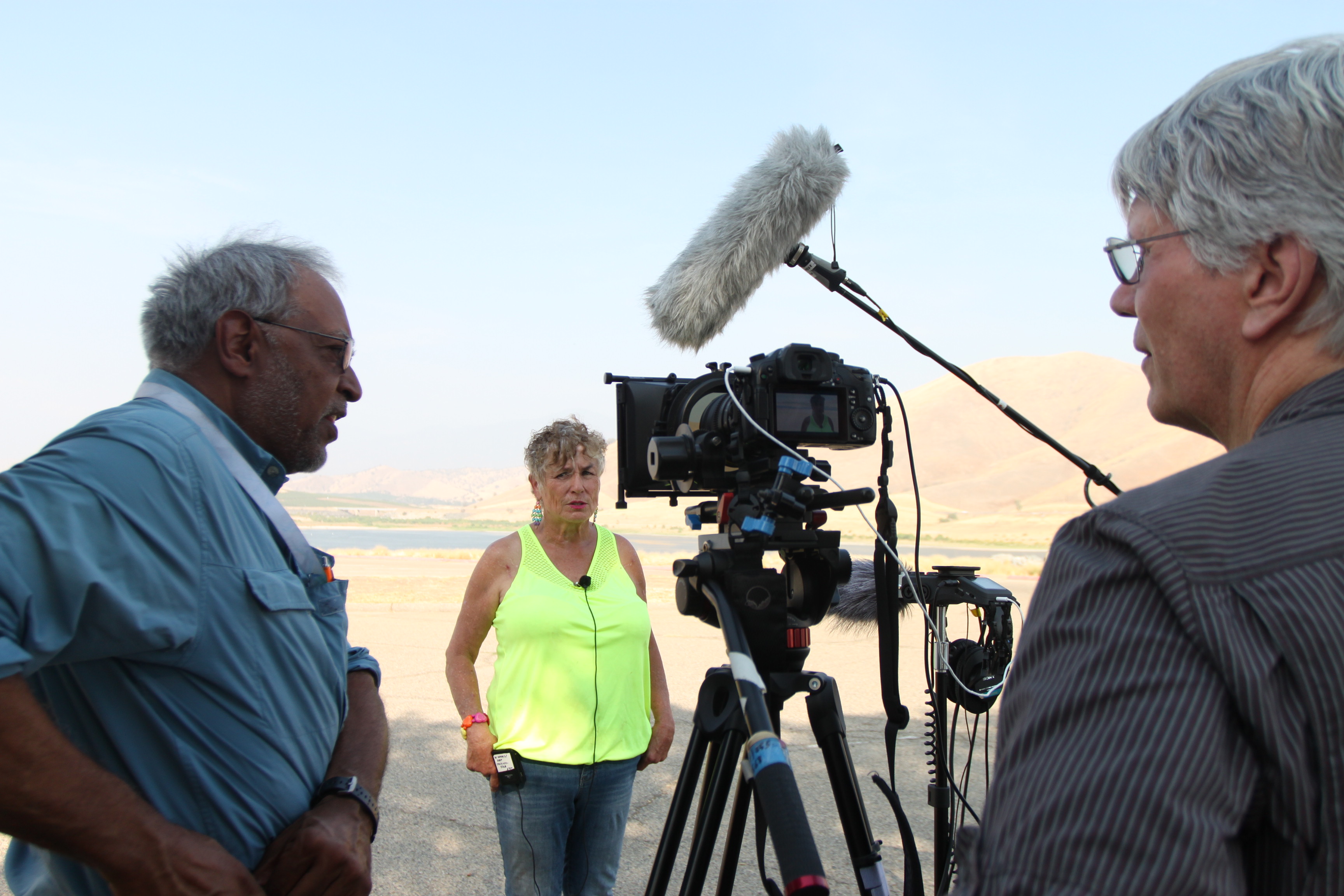

At Lake Success, CA talking with Donna Johnson from East Portervillie

At Lake Success, CA talking with Donna Johnson from East Portervillie

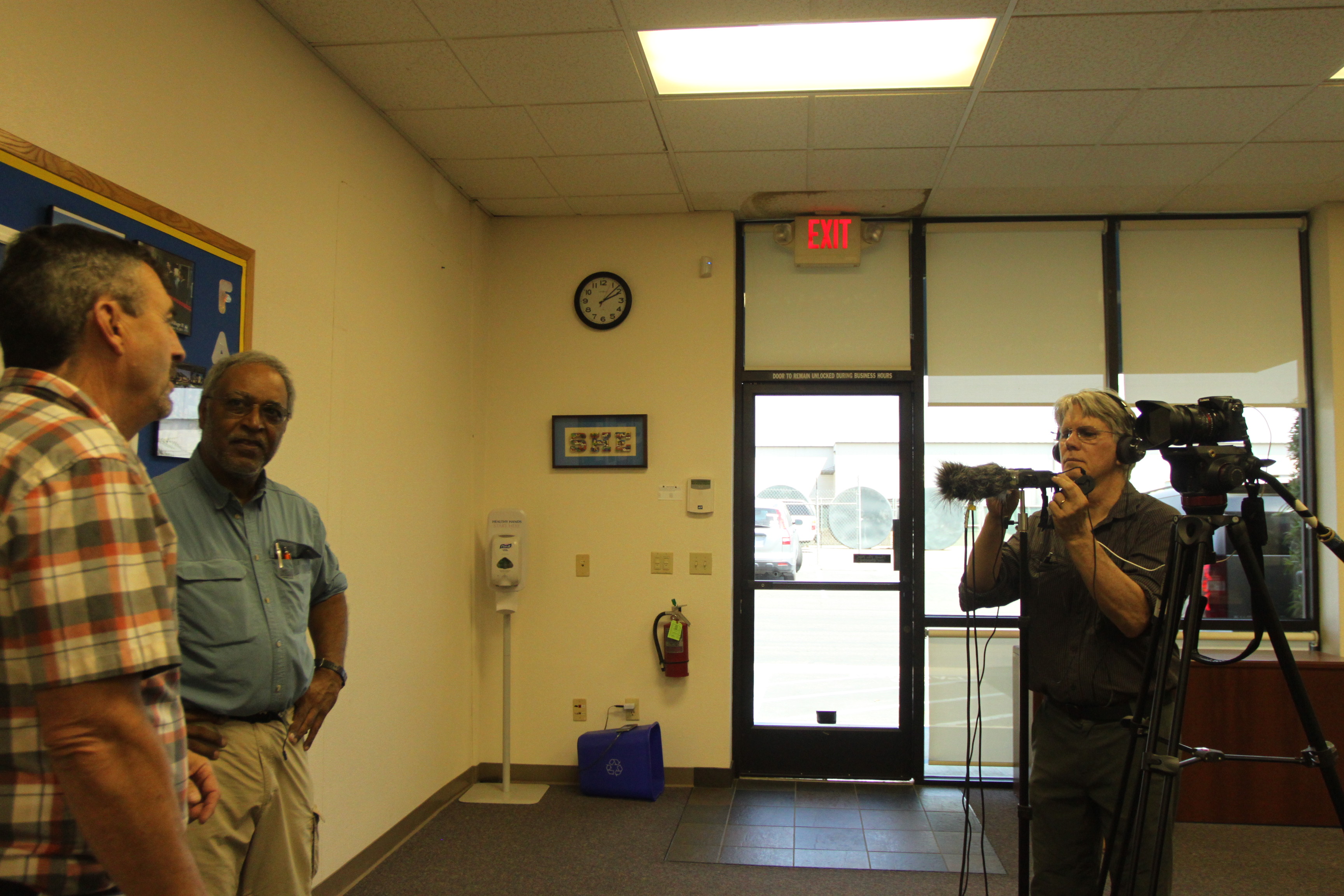

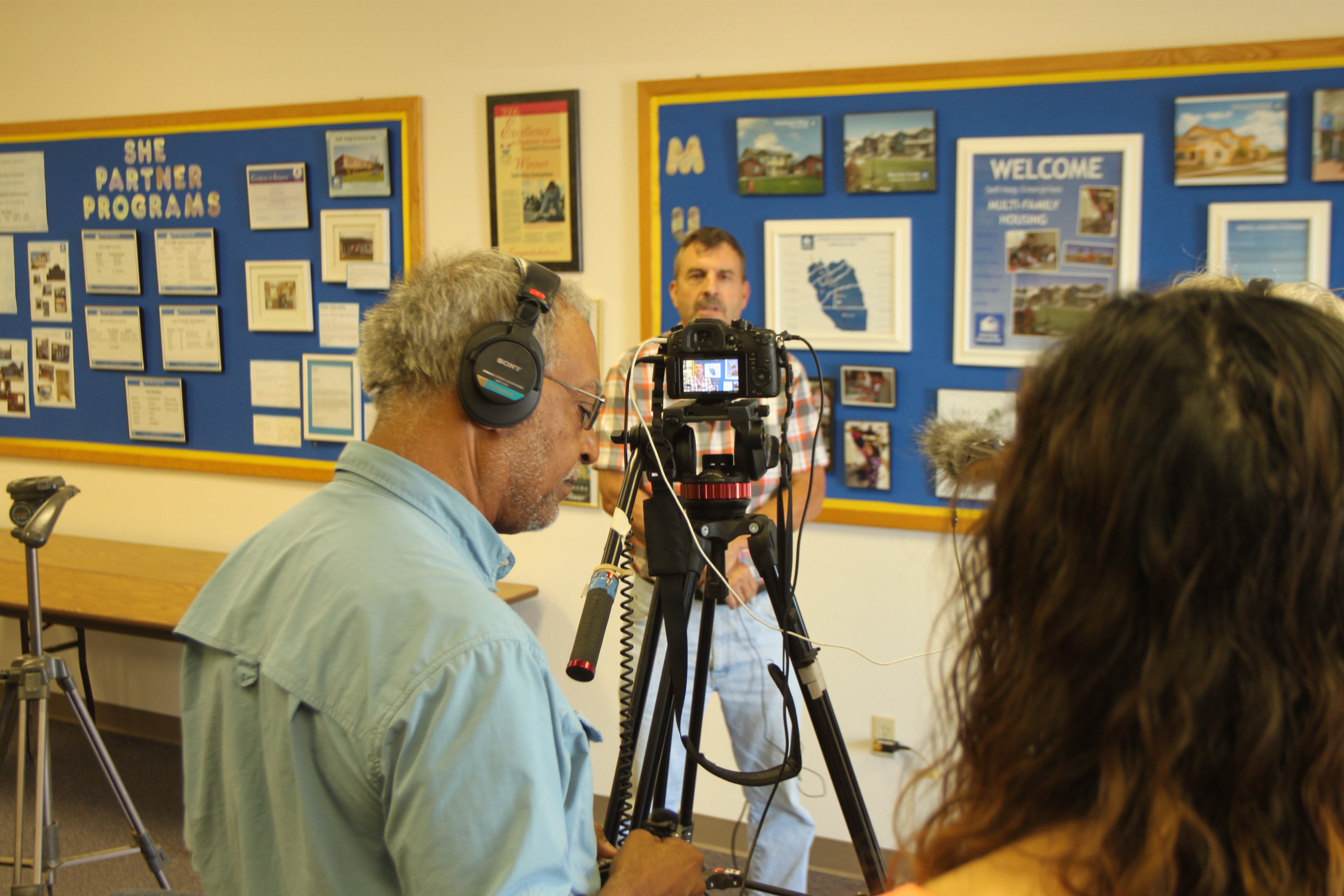

Setting up to talk with Paul Boyer in west Visalia about the efforts of his company to help residents obtain water

Setting up to talk with Paul Boyer in west Visalia about the efforts of his company to help residents obtain water

I'm monitoring sound before beginning to interview Paul at his office

I’m monitoring sound before beginning to interview Paul at his office

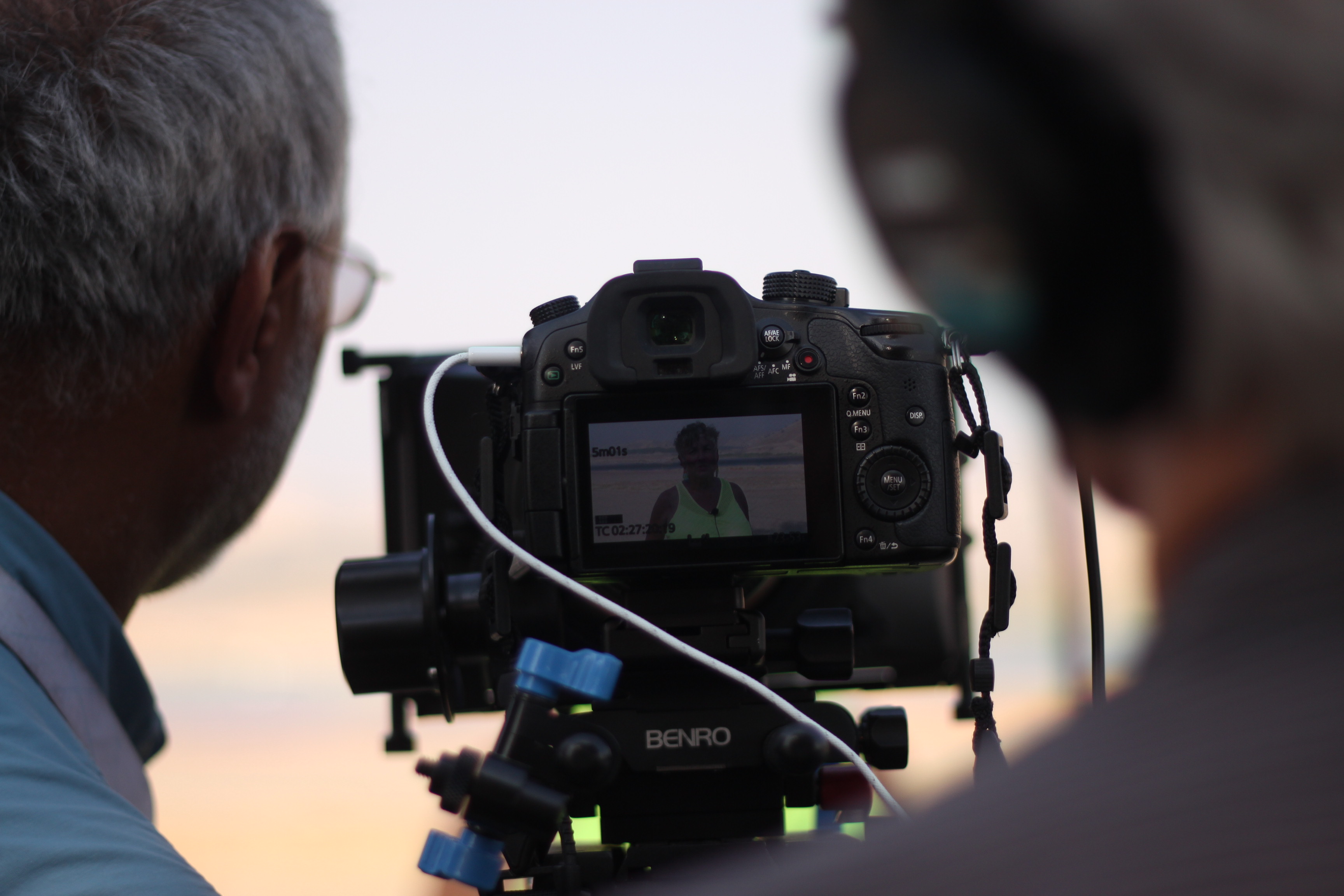

Donna Johnson (16) Melissa Wichnell (8)

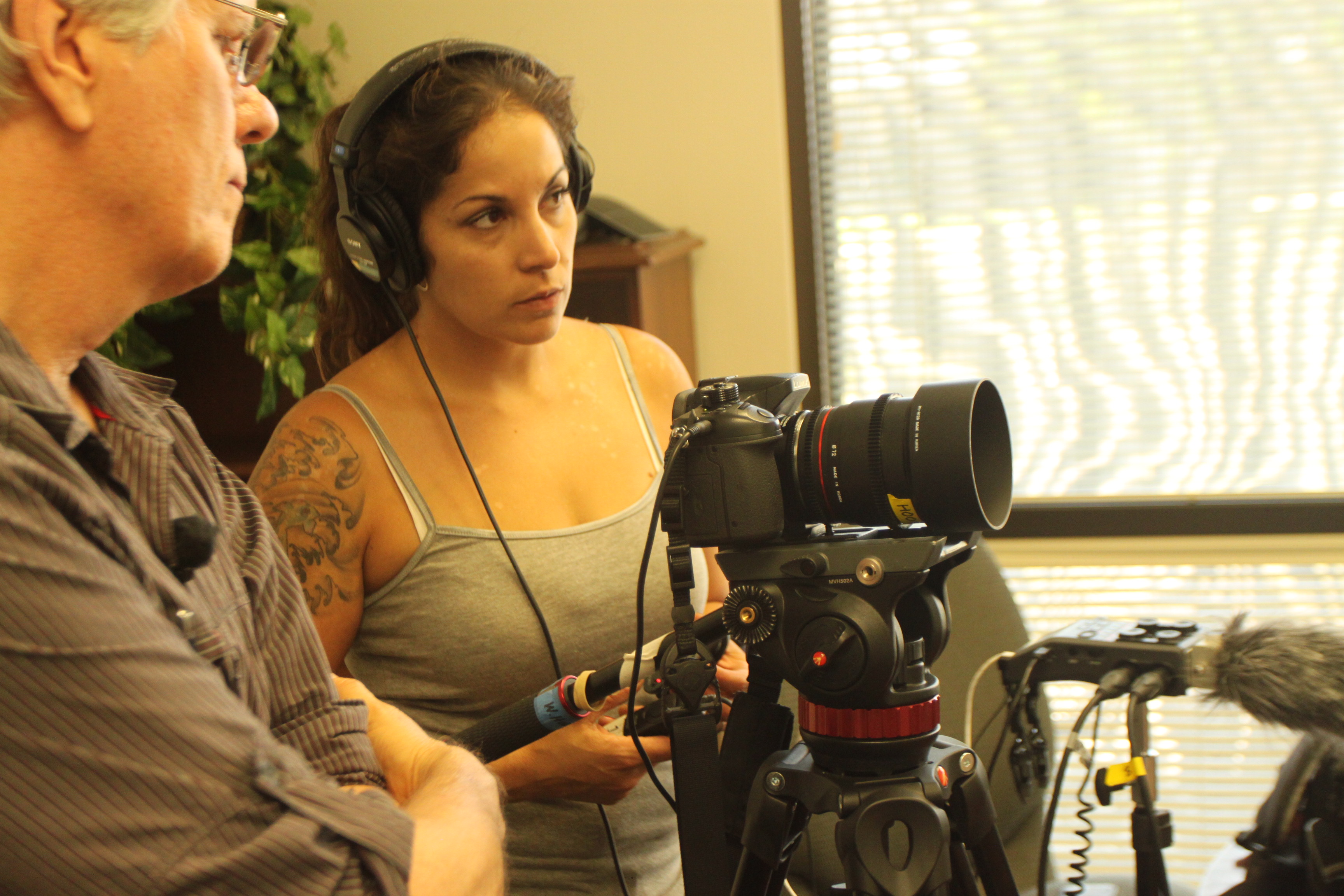

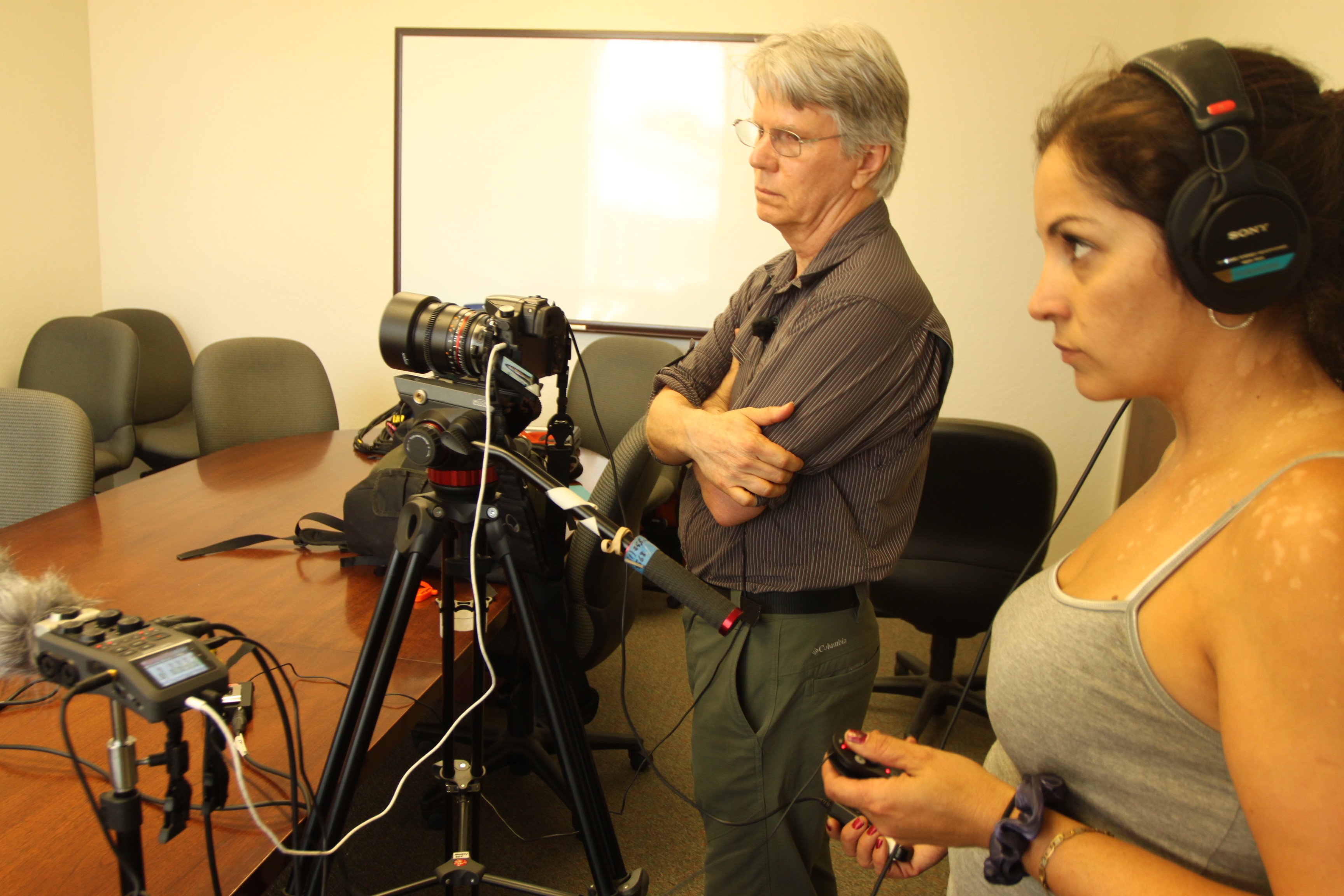

James Garrett monitoring video and Melinda Steffen checking audio at Visalia interview

James Garrett monitoring video and Melinda Steffen checking audio at Visalia interview

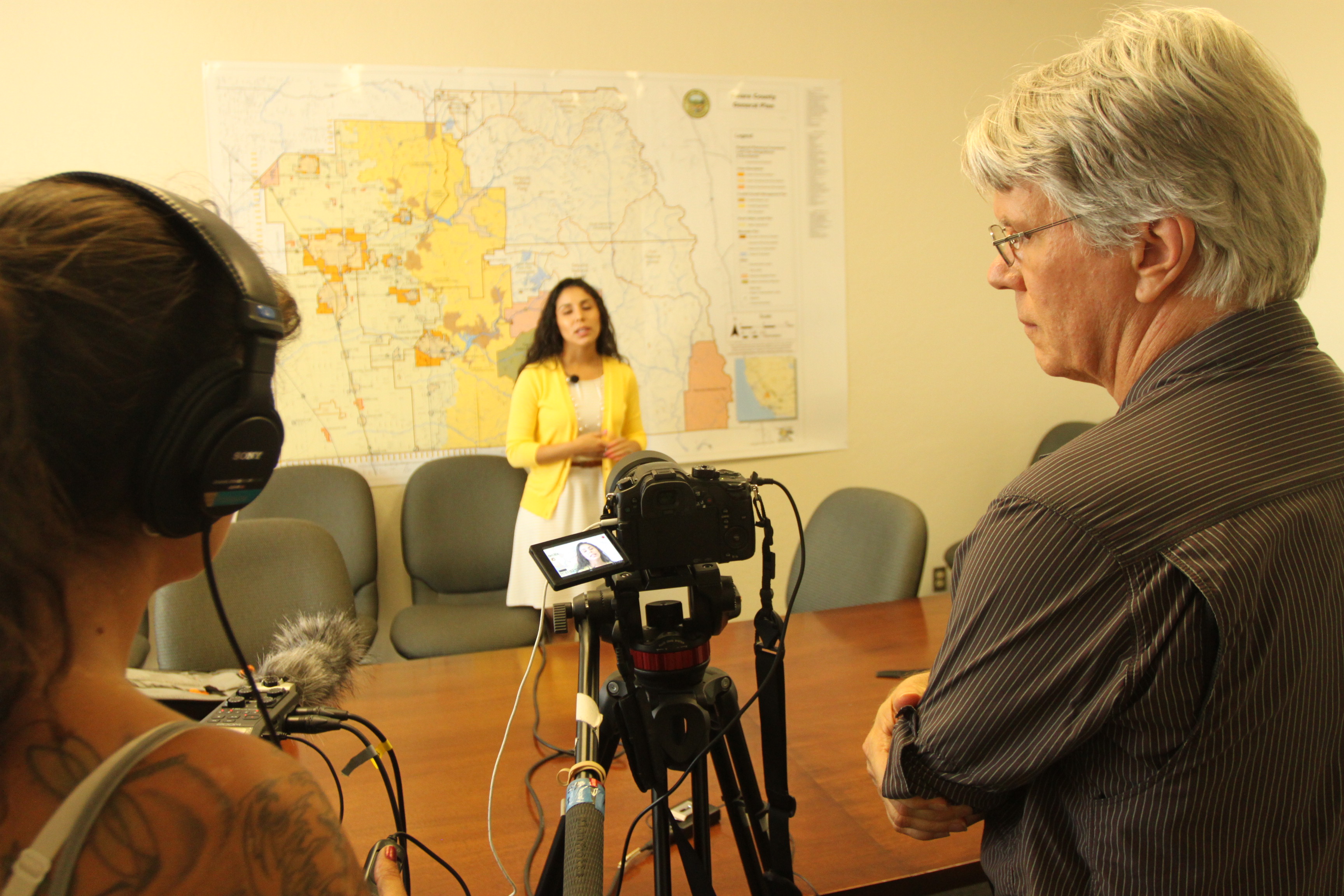

Melissa Wichnell discussing Visalia, CA emergency planning for water distribution

Melissa Wichnell discussing Visalia, CA emergency planning for water distribution

Melissa Wichnell (13) Melissa Wichnell (15)

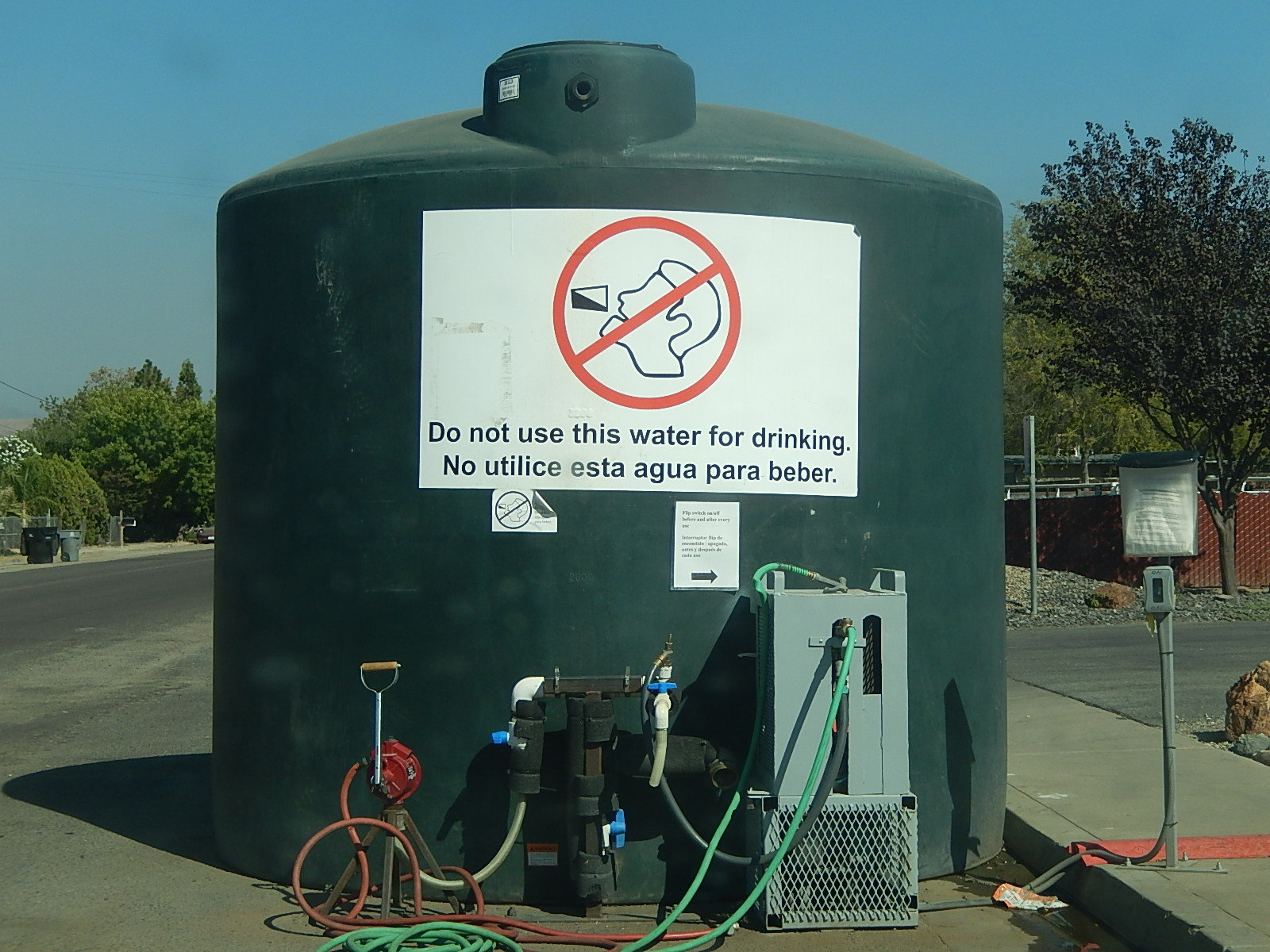

Nonpotable water tank near the fire station in East Porterville, CA

Nonpotable water tank near the fire station in East Porterville, CA

We completed a series of interviews with local officials in Visalia, CA and talked with local resident Donna Johnson in East Porterville about what she was personally doing to help neighbors whose wells had gone dry (as was her own).

The level of poverty in East Porterville is intense. Housing prices, already low, are decreasing due to lack of water further burdening residents who might want to leave the area.

We shot with my Panasonic GH4 in 4K 30fps mode, using a Zoom H6 digital audio recorder as well as Audio Technica Pro70 wired lav’s an dRode NTG-4 shotgun in a Rode blimp.Also used a Zoom hypercardioid shotgun mic and when using the Zoom for field notes, the mid-side capsule mic. I was very pleased with the performance of my equipment in very hot conditions, wind and for interior shots with no problems encountered.

There is still much to be done before we begin cutting the documentary’s final look; a tentative title: WATER AND THE LIVES OF THOSE LESS FORTUNATE.
